IP Rated Connectors
IP65 to IP69K including Over Mold
X-Lok
Amphenol LTW’s X-Lok Series connectors are presented in various sizes for power, signal and hybrid applications for fast, simple and reliable connections.
Featuring a push lock mechanism for intuitive mating with audible and tactile feedback.
The X-Lok Series provides less mating failure and quicker installation than traditional threaded solutions.
With UL1977 & 2238+50e certification, ALTW’s X-Lok is your ideal solution for outdoor applications.
Power
- Nominal Current Up To 80A
- Operating Voltage Up To 600V
- Waterproof IP67 / IP68 / IP69K
- UL / cUL / TUV Certified
- PWE (8A) / PWF (12A) / PWG (16A)
- PWC (20A) / PWCU (20A+2A)
- PWH (25A)
- PWL (30A)
- PWM (50A) / PWMU (50A+2A)
- PWP (80A) / PWPD (80A+5A)
- PWX (30A, 50A, 80A & Hybrid)
Single Pair Ethernet
ALTW’s proprietary SPE interface integrated in M8 (G8) / M12 / FLOS+ / X-Lok
- Providing low power & simple networking on end-point sensors
- Cost-effective, smaller & lighter than standard 4 pairs ethernet cable
- Compatible 10/100/1000 base-T1 data rates as existing technologies (24~26 AWG Standard Length 15m)
- Receptacle IP67 UNMATED waterproof, also available in double ended and field installable
- Vibration resistance 20g (10 ~ 2,000 Hz)
- Supports PoDL (Power Over Data Lines)
USB
Amphenol LTW’s complete range of waterproof USB connectors offer you ideal solutions to data/power transfer in harsh or demanding environments.
This USB family of connectors consist of Type-A, Type-B, Type-C, Mini USB, Micro USB, and meet USB 2.0, 3.2 (Gen 1), 3.2 (Gen. 2) standard.
- IP67 / IP68 mated or unmated
- Plastic or metal
- Comprehensive product line
- Wide assembly style options
- High speed transmission up to 10Gbps
- Various mating styles
- Flammability UL 94V-0
.
M Sensor
M series is designed typically for industrial process measurement and control according to IEC standard. M series offers secure and reliable data as well as superior power transmission performance.
M series is an ideal solution for compact design where the environmental protection and stable connection are required.
Amphenol LTW provides a comprehensive product range of M series, including M5 / M8 / Guided M8 / M10.5 / M12 / 7/8″ and M23, available in receptacle, overmolded cable, field installable and accessory
NMEA 2000
Amphenol LTW NMEA 2000 Connector System is specifically designed to meet NMEA 2000 protocols and standards.
The IP68-rated family of multi-port, standard and metric circular connectors, sensor and actuator cables, and elbow joints are ideal for connecting marine electronic equipment and display units within ships and boats.
The NMEA 2000 line features high signal reliability, allowing multiple electronic devices to share data over one common channel.
LED Indicator
Amphenol LTW’s LED Indicator series are built in metal/plastic shells with up to 6 different LED colours.
With IP67 ingress protection, it is your ideal indicator choice for outdoor applications.
Cable Joiner
Amphenol LTW’s Cable Joiner was designed and developed for simple, quick and reliable cable interconnections.
It is available in several options to meet various cable O.D. and wire sizes. Amphenol’s cable joiner also meets the latest requirements for locking protection.
Installation is quick and simple with standard crimping terminals or screw terminal blocks for different application needs.
Pressure Relief Vent
Amphenol LTW’s pressure relief vent series are engineered to equalize the pressure inside/outside the sealed enclosure and prevent heat dissipation of electronic components.
Spring-loaded type and rectangular type functioned to prevent sudden heat/pressure rise of a battery module that leads to an explosion.
Built with hydrophobic/oleophobic membranes to IP68/IP69K ingress protection keeping liquids, oils, and moisture out and reducing condensation in sealed enclosures.
- Available in screw thread & snap-in version.
- Metal / stainless / plastic version
- Hydrophobic membranes type (water resistant) & oleophobic membranes type (water & oil resistant)
- Air permeability up to 10,000 ml/min @ 70mbar
- Flammability UL 94V-0

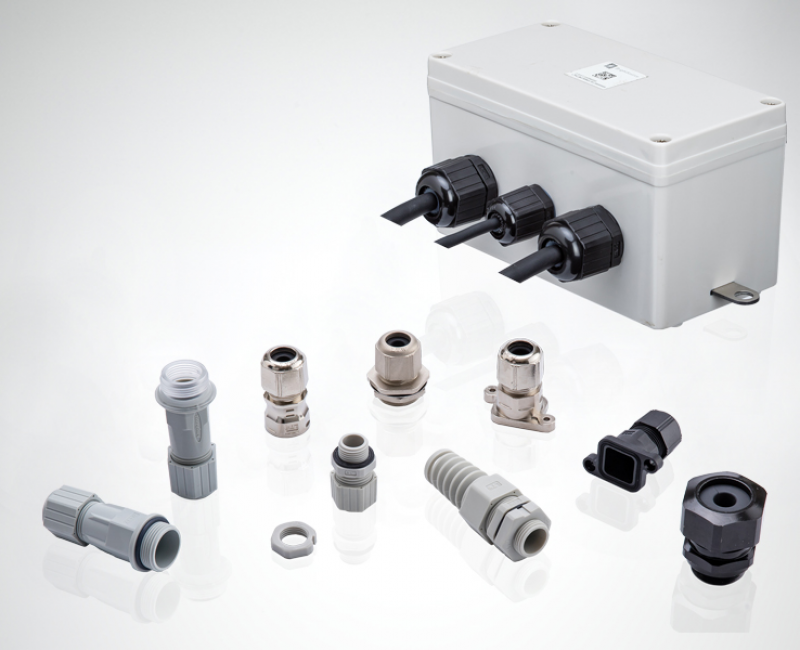

Cable Gland
Amphenol LTW’s Cable Glands are applied to in conjunction with cable or wiring for power or electrical purpose.
The Cable Glands are attached to the end-equipment and acted as a sealing of terminating housing to ensure the protection of electrical equipment and enclosures.
Available in different size, materials; this is the most cost-effective waterproof solution.
